Temperature and humidity sensor
主体品牌小米（MI）型号小米8屏幕指纹版入网型号以官网信息为准上市年份2018年上市月份9月基本信息机身颜色黑色机身长度（mm）154.9机身宽度（mm）74.8机身厚度（mm）7.6机身重量（g）177运营商标志或内容无机身材质分类玻璃后盖操作系统
Features
New industrial appearance quick installation design, suitable for quick installation and deployment
Imported sensor, high precision, fast response, good long-term stability
Large-screen LCD backlight, dual display of temperature and humidity, multiple installation and output modes are optional
With excellent anti-interference ability and protection function, CE certification, IP65, ROHS
SERE WSD10 series sensor is a temperature and humidity sensor specially designed for industrial applications. It is specially designed for lightning surge, electrostatic discharge, group pulse, voltage resistance, etc., and has strong anti-interference ability. There are three installation methods: wall-mounted, pipe, and split. Three output modes of current, voltage, and RS485 are available. Strong on-site installation capability. Spring screw/terminal design is suitable for quick installation. It can be widely used in computer rooms, HVAC, buildings, storage and other places where temperature and humidity measurement and control are required.

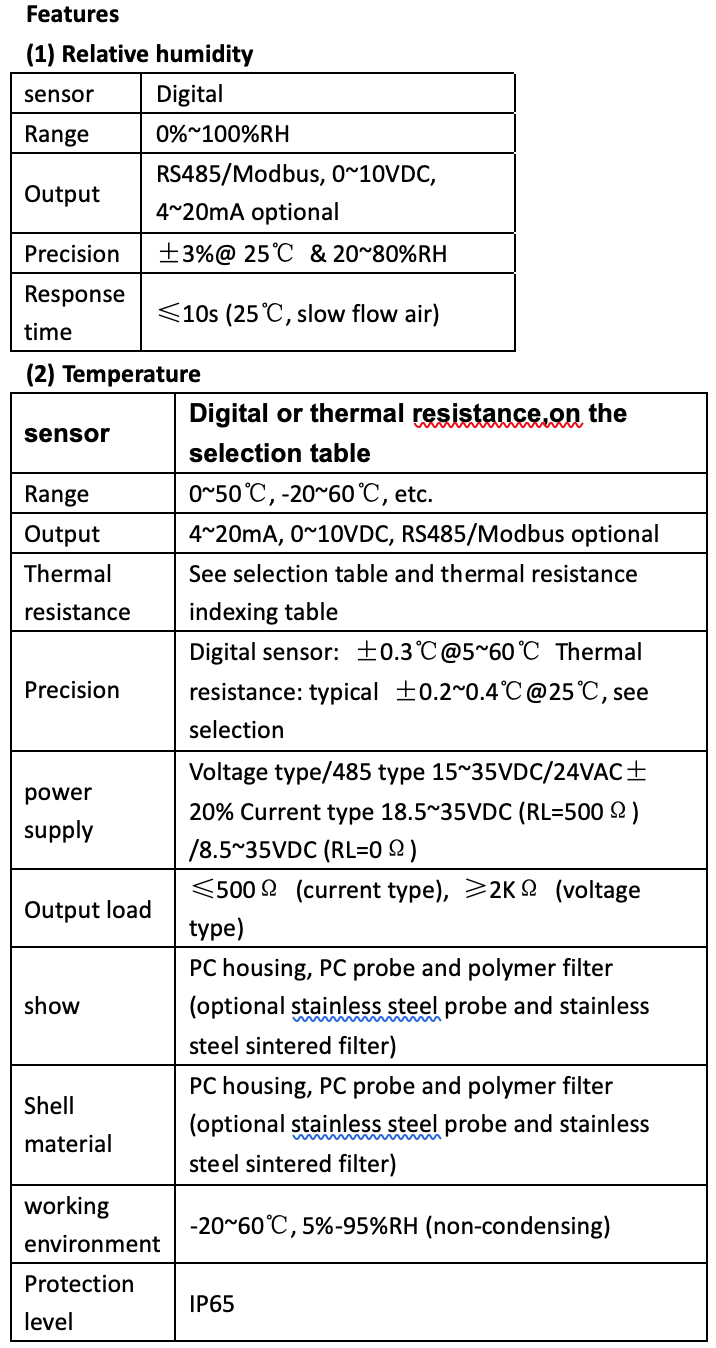

Technical parameter
Notice:
1. The current type of the SERE WSD101/102/103 product is powered by the humidity loop, so this loop must be used, otherwise the product cannot work normally.

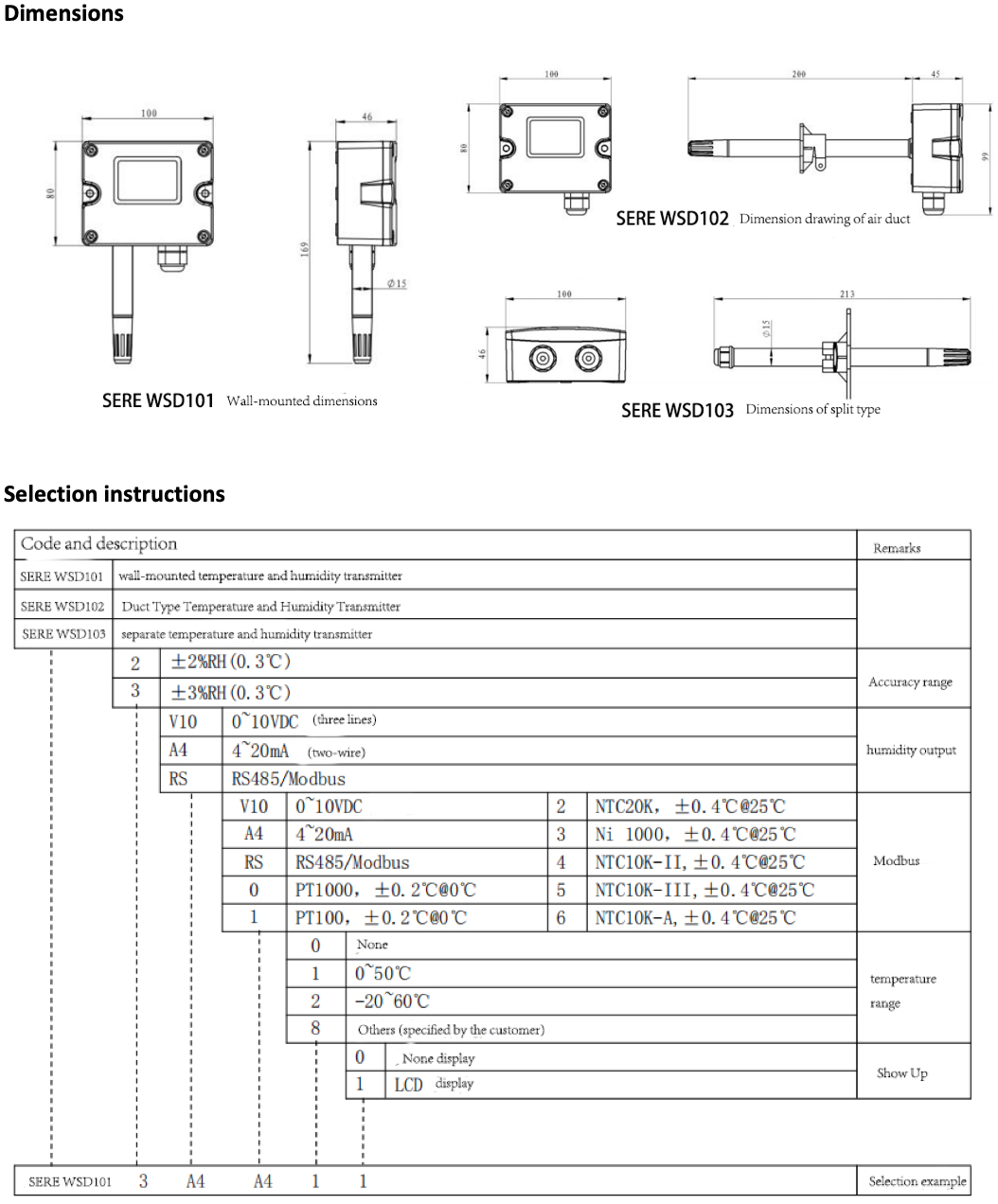

2. Only when the temperature output option is V10 or A4, the corresponding temperature range 1-8 needs to be selected; otherwise, only 0 can be selected. 3. Example SERE WSD101-3A4A411 represents the wall-mounted type with an accuracy of 3%RH (0.3°C), humidity output 4-20mA, temperature output 4-20mA, temperature range 0-50°C with display.
4. The sensor probe of this product is exposed to high-concentration chemical gas for a long time, which may cause the sensor's reading to shift.
